Description
Isothermal solution validated in climatic chambers to NF S99 700 standard. Allows the transport of 2/8°C refrigerated products over a 48-hour period.

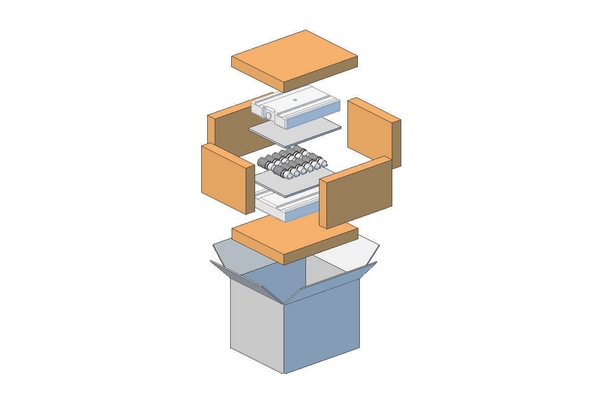

This isothermal solution consists of an outer box made of Isostrat (3mm XPS foam), inner insulation (30 to 40mm XPS foam panels), an inner thermal barrier made of Isostrat (5 to 10mm), and phase-change cold accumulators at 0°C.
These solutions are validated in accordance with profiles ST-48 a / b and d of standard NFS 99 700.
The benefits
Stand-alone solution: when the cold accumulators are inserted in the packaging, it’s self-sufficient, preserving fresh produce for 48 hours without the need for additional energy.
The temperature of the product inside the packaging is controlled.
Features
Reference | Interval | Duration | Volume produced | Interior dimensions | Validation NF S99700 | |
---|---|---|---|---|---|---|
1L | R48_1 | 2/8°C | 48h | 1 Litre | 180x145x25mm | 48a |
1.3L | R48_1.3 | 2/8°C | 48h | 1.3 Litres | 180x60x120mm | 48b / 48d |
1.5L | R48_1.5 | 2/8°C | 48h | 1.5 Litres | 140x70x170mm | 48a |
2L | R48_2 | 2/8°C | 48h | 2 Litres | 290x200x30mm | 48a |
3L | R48_3 | 2/8°C | 48h | 3 Litres | 145x110x175mm | 48a / 48d |
5L | R48_5 | 2/8°C | 48h | 5 Litres | 200x190x135mm | 48b / 48d |
10L | R48_10 | 2/8°C | 48h | 10 Liters | 300x180x190mm | 48a / 48d |
13L | R48_13 | 2/8°C | 48h | 13 liters | 330x280x140mm | 48a / 48d |
15L | R48_15 | 2/8°C | 48h | 15 Litres | 400x190x200mm | 48b / 48d |
30L | R48_30 | 2/8°C | 48h | 30 Litres | 380x305x260mm | 48b / 48d |
33L | R48_33 | 2/8°C | 48h | 33 Litres | 455x375x200mm | 48a / 48d |
Discover other isothermal packaging solutions
Read more
Isothermal packaging in extruded expanded polystyrene (XPS) provides effective thermal insulation and protection against temperature variations. XPS also attenuates shocks and vibrations during transport. Lightweight and durable, XPS is also recyclable through dedicated channels and can be manufactured from recycled material, helping to reduce carbon footprints.
Whether it’s road, rail or air transport, most service providers have buffer facilities to collect the maximum amount of goods, and thus optimize the vehicle.
48 hours is 2 days, and it’s the time needed to guarantee that your drug will be in the best possible condition, that it hasn’t lost any of its properties, and that it will remain effective once it reaches the end user.
Is your refrigerated healthcare product likely to travel for more than 48 hours? Don’t hesitate to ask our sales department for advice on other solutions. Our isothermal packaging is approved for up to 96 hours.
Standard solutions are not always enough. Customized packaging allows us to adapt dimensions, insulation and protection to the specific needs of our products.
Isovation, with its engineering department, designs customized isothermal boxes according to precise specifications. From co-development to production, each package is tested and validated to guarantee safe transport in line with your requirements.
The transport of heat-sensitive products concerns many sectors. Whether it’s a question of preserving vaccines, guaranteeing food freshness, shipping temperature-controlled packages or facilitating last-mile logistics, customized isothermal solutions meet every requirement. Isovation designs solutions adapted to the technical and regulatory constraints of each industry.
XPS (extruded expanded polystyrene) is the basis of our products, the material with the perfect properties for insulating medicines and synonymous with lightness.
At Isovation, recycling has long been a concern, and all XPS offcuts are returned to our supplier in crushed/compacted form. The latter reintegrates a certain percentage in its new productions, so we can be proud of achieving a complete loop.
Isostrat is the name given to our boxes, made of XPS foam and covered with silver PET film. These 2 materials are made in France, including one near Avignon (our production site). Once again, respect for the environment is one of our quality commitments.
Cardboard can also be used in the design of your boxes, and needless to say, recycling channels are well established in France, allowing for infinite reintegration into new cardboard production.
you need to comply with good practice for the wholesale distribution of medicines for human use?
Our isothermal packaging is ideal for all heat-sensitive products that need to be kept between 2 and 8°C, with a maximum shelf-life of 48 hours
This includes healthcare products such as medicines, blood samples, vaccines, biotherapy pens and microbiological analysis samples.
Our design department will tailor packaging to suit your needs: transport time, handles, pre-cutting, tear-off strip…
Need specific validation?
Our climatic chambers test the performance of your isothermal packaging, including for other uses, products or destinations.
To personalize your isothermal packaging (logo, slogan, recycling info, contact details), our graphics department will work with you to validate your artwork. Packaging that reflects your corporate image.
I need to ship heat-sensitive products, but I’m not familiar with the subject. I need advice on organization, equipment and good distribution practices.
